HYDRA
HYPER
fidelity audio
is achieved by arraying multiple state-of-the-art aerospace grade planar magnetic drivers into a mutually-coupling acoustic structural archectecture.
With powered eight and passive three driver planar magnetic curvatures , HYDRA890 and HYDRA360 excite Hyper-Fidelity audio response with laser precise coherence and controlled dispersions of ninety (90) and sixty (60) degrees respective.
DYNAMIC
Distortionless rising full-range response
from 100 to 50,000 Hz overcomes energy loss due to air friction by light-as-air 5-micron space-tempered cryogenic diaphgrams energized within a 1.5 Tesla peak open circuit empowered with up to 8kW of transient power handling per row.
RANGE
with unrivaled long Throw performance
yielding merely 1.2 dB of Sound Pressure Level (SPL) per doubling of distance away from source, decimating line arrays by double (-3dB) and point sources by 4x (-6 dB).
ARRAY
Able, stackable, and flyable up to 32x rows high for even tonally balanced coverage as far as the eye can see.
System: Planar magnetic surface array
Transducer Type: New generation dipole planar
Magnetic Structure: Proprietary double-sided magnet array for the highest induction in the industry of 1.8 Tesla
Magnet Type: High temperature N48H Neodymium
Diaphragm Type: Precision tensioned, ultra-thin with force equalization, the lightest in the industry
Frequency Response: 200-50,000 Hz (1 row) : 100 to 50,000 Hz (4 or more rows)
Vertical Dispersion: Adjustable from 0 to 15 degrees in 5 degree increments
Horizontal Dispersion: 90 degrees
Peak Power Handling: 8,000 W
RMS Power Handling: 1600 W per row
Energy Loss Per Doubling of Distance (4 Rows): -1.2 dB per doubling of distance from source
Efficiency: +114 dB/1w/1m above 10 kHz
THD: <1% @ 100 dB system
Impedance: 4 Ohms purely resistive
Color: anodized black, other colors available on custom order
Weight: 100 lbs (62 kg)

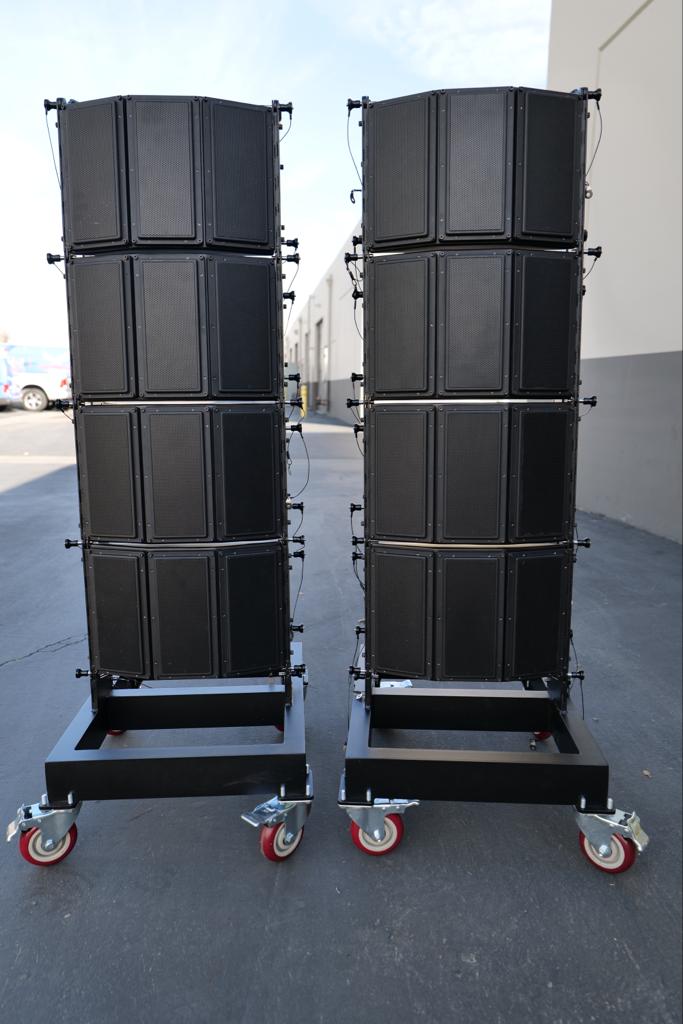

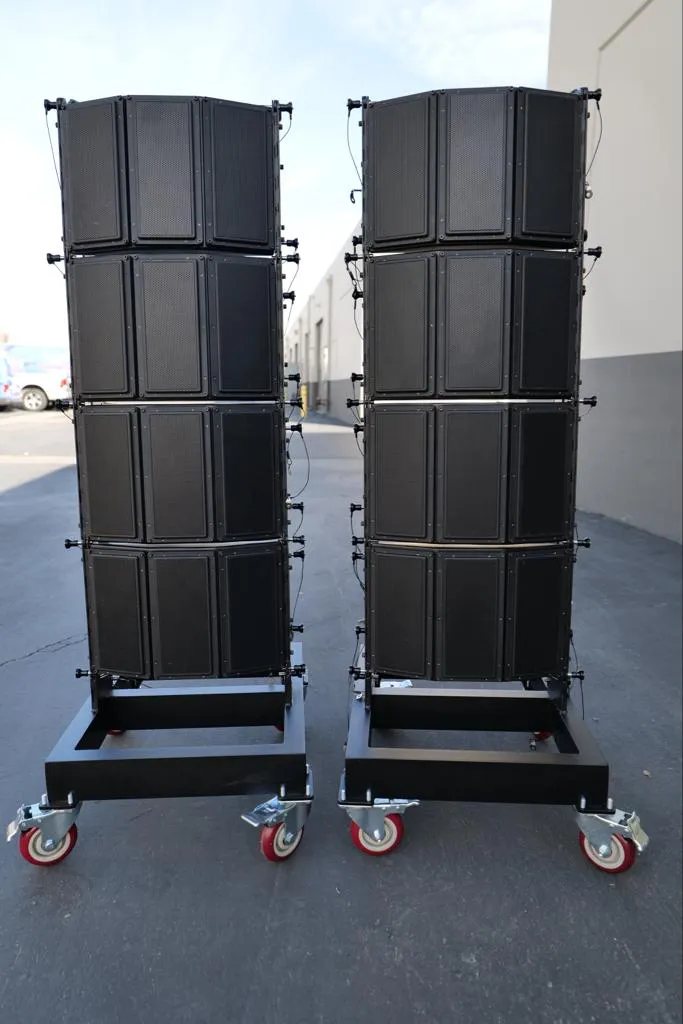

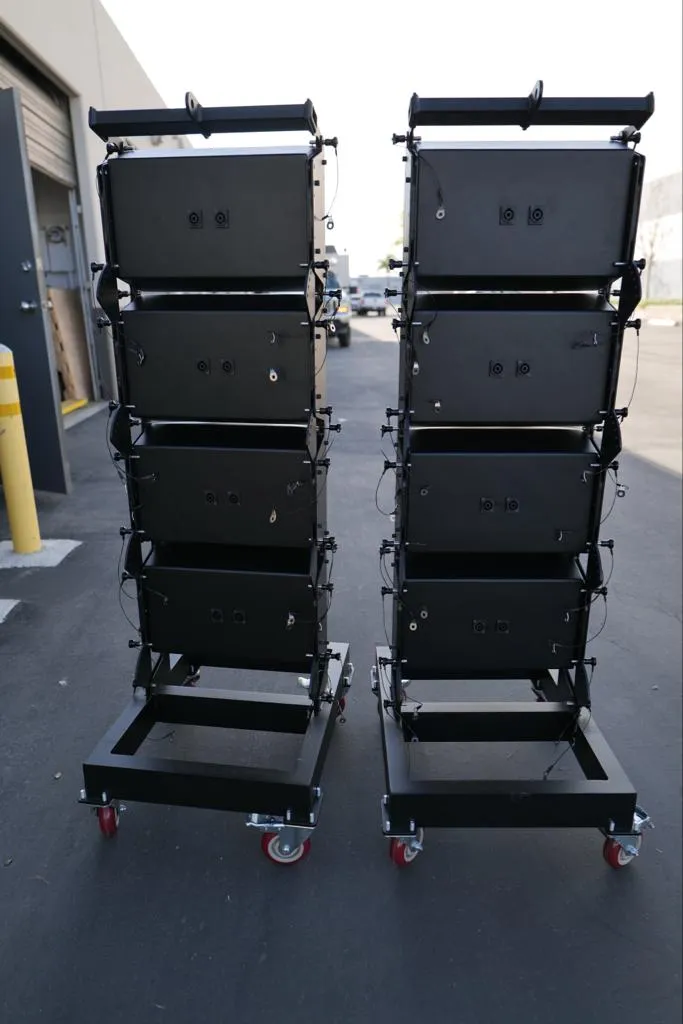

System: Planar magnetic surface array
Transducer Type: New generation dipole planar
Magnetic Structure: Proprietary double-sided magnet array for the highest induction in the industry of 1.8 Tesla
Magnet Type: High temperature N48H Neodymium
Diaphragm Type: Precision tensioned, ultra-thin with force equalization, the lightest in the industry
Frequency Response: 200-50,000 Hz (1 row) : 100 to 50,000 Hz (4 or more rows)
Vertical Dispersion: Adjustable from 0 to 15 degrees in 5 degree increments
Horizontal Dispersion: 60 degrees
Peak Power Handling: 3,000 W
RMS Power Handling: 600 W
Energy Loss Per Doubling of Distance (4 Rows): -1.2 dB per doubling of distance from source
Efficiency: +114 dB/1w/1m above 10 kHz
THD: <1% @ 100 dB system
Impedance: 4 Ohms purely resistive
Color: anodized black, other colors available on custom order
Weight: 30 lbs (18 kg)
HYDRA360: Passive
HYDRA890: Powered
Output Power: 2500W BTL
Output Circuitry: UMAC™ Class D - full bandwith PWM modulator with ultra low distortion
Output Voltage: 85 Vp / 170 Vpp (unloaded) / Bridged 170 Vp / 340 Vpp (unloaded)
Amplifier Gain: 28.2 dB / 34.2 dB bridge mode
Signal To Noise-Ratio: > 119 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical): < 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response: 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Damping Factor: >350, each channel (8 Ω load, 1 kHz and below)
Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Readouts & Control options: Protect/Disable (mute), Temperature, Clip, Voltage, Auto Standby/Wake-up (3 timings)
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operation Voltage Universal Mains: 85-265V
SMPS RMS Power Limit: 1500 W (230VAC / 120VAC ) 1300W (100VAC)
Aux. Power for DSP: ±15 V, +7.5 V, maximum total watt available: L-PRO2S: 8.3 W
Standby Consumption: < 0.25 W (Green Energy Star & ErP 1275/2008/EC compliant)
